Print reference Blümlimattweg 15


Blümlimattweg 15, Thun

2021

Line

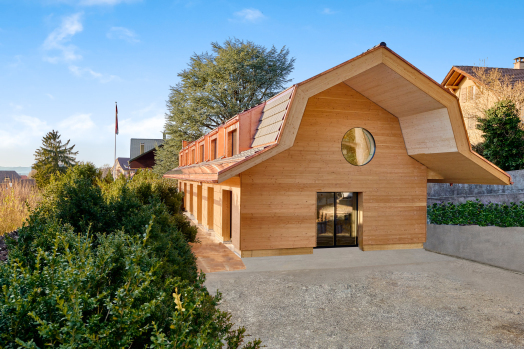

At Blümlimattweg 15 in Thun, Switzerland's first apartment building with a basement made of wood with TS3 joints was built. The building is also the Living Lab of the DeepWood research project and has innovative approaches to building physics.

Interior view zoom
Interior view
Wooden basement zoom
Wooden basement
View from above of the wooden basement zoom
View from above of the wooden basement
Section through building zoom
Section through building
Detail cellar from wood zoom
Detail cellar from wood

The Project

An apartment building full of innovations was built in Thun. No concrete or steel was used in the entire house with 5 residential units - not even in the basement. Cross-laminated timber panels lie on top of a 160 mm thick insulation board. Black insulation encases the wood for moisture protection. The interior walls are non-load-bearing; columns and the exterior walls support the cross-laminated timber floor slab. Thus, the basement is very flexible in use and can be used in many ways, thanks to the pleasant indoor climate due to the visible and tangible wood.


The house in Thun is also the living lab of the DeepWood research project together with the Lucerne University of Applied Sciences and Arts and the Bern University of Applied Sciences. With DeepWood, the planning methods Building Information Modeling (BIM) are being further developed.


The Construction
The basement is a solid timber structure made of cross laminated timber panels. TS3 joints allow the floor slabs without beams. The exterior walls in timber frame construction are optimally insulated, which makes it possible to dispense with a heating system. After all, there is no conventional heating system in this building. Instead, there are stoves in the apartments and a warm air supply as a backup.


The Challenges
The Blümlimattweg was the first time a 45-degree joint was grouted on a construction project. TS3 only had experience with this from research projects. Another challenge of this project was the cold temperatures during grouting. For the first time, winter construction measures had to be developed and used. The joints were heated locally.

- Number of floors: 3

- Gross floor area: 998 m²

- Glulam: 178 m³

- TS3 technology: 360 linear meters of joints

Architecture
HLS Architekten, Zürich

Building Owner
Yamanakako AG, Thun

Timber Construction Engineers
Timbatec Holzbauingenieure, Zürich

Timber Construction
Stuber Holzbau, Schüpfen

General Contractor
Stuber Holzbau, Schüpfen

Photographie
Nils Sandmeier, Biel
