Print reference New build MFH Berger


New build MFH Berger, Thun

2015

Line

A four-floor multi-family dwelling made of timer elements constructed in the Lauenen villa quarter in Thun.

Arranging the ceiling element zoom
Arranging the ceiling element
Cut-outs for chippings and electrical installations zoom
Cut-outs for chippings and electrical installations
Closure pours zoom
Closure pours
Quality assurance zoom
Quality assurance
View of Thun Castle and the Stockhorn chain zoom
View of Thun Castle and the Stockhorn chain
Design zoom
Design

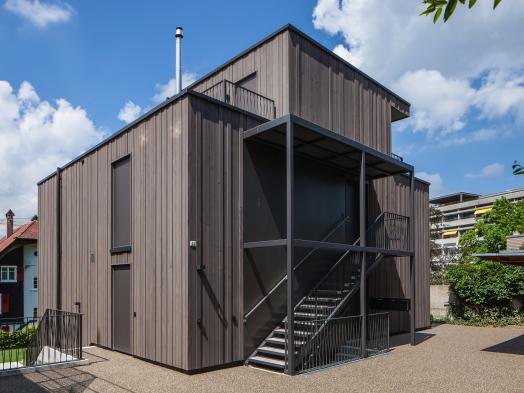

External view zoom
External view
Internal view zoom
Internal view
Internal view zoom
Internal view

Initial position

A single family dwelling erected in 1920 was considered unworthy of restoration. A new building was designed to make better use of the plot and simultaneously serve as an investment option for the building owners.


Type of construction

Whilst the external wall elements were created as conventional timber frame walls with local reinforcements and a rear-ventilated facade, the storey ceilings feature the revolutionary Timber Structures 3.0 technology. This technology makes it possible to form a flush and very shallow ceiling by bonding the faces of timber building components together. It radically simplifies the design process and makes installation both fast and economical. The ceiling is immediately dry and loadable as no concrete is used. Construction began at the beginning of February 2015 and the building was ready for occupation five months later in July 2015.

  • Timber Structures 3.0
  • Storey ceilings: 230 m²

Services provided by Timbatec AG

  • Pre-project
  • Construction project
  • Call for tender
  • Implementation project
  • Construction management

Services provided by Timber Structures 3.0 AG

  • Design of TS3 ceilings
  • Call for tender for TS3 ceilings
  • Production and delivery
  • Supervision of installation
  • Installation of ballast chippings on ceiling slabs
  • Preparation of casting edges
  • Closure pours
  • Quality assurance

Architect
Brügger Architekten
3600 Thun
Timber construction engineer
Timbatec Holzbauingenieure Schweiz AG, Thun
3600 Thun
Timber contractor
Ramseier holzbau AG
3510 Langnau
Building owner
S. Berger
3600 Thun
